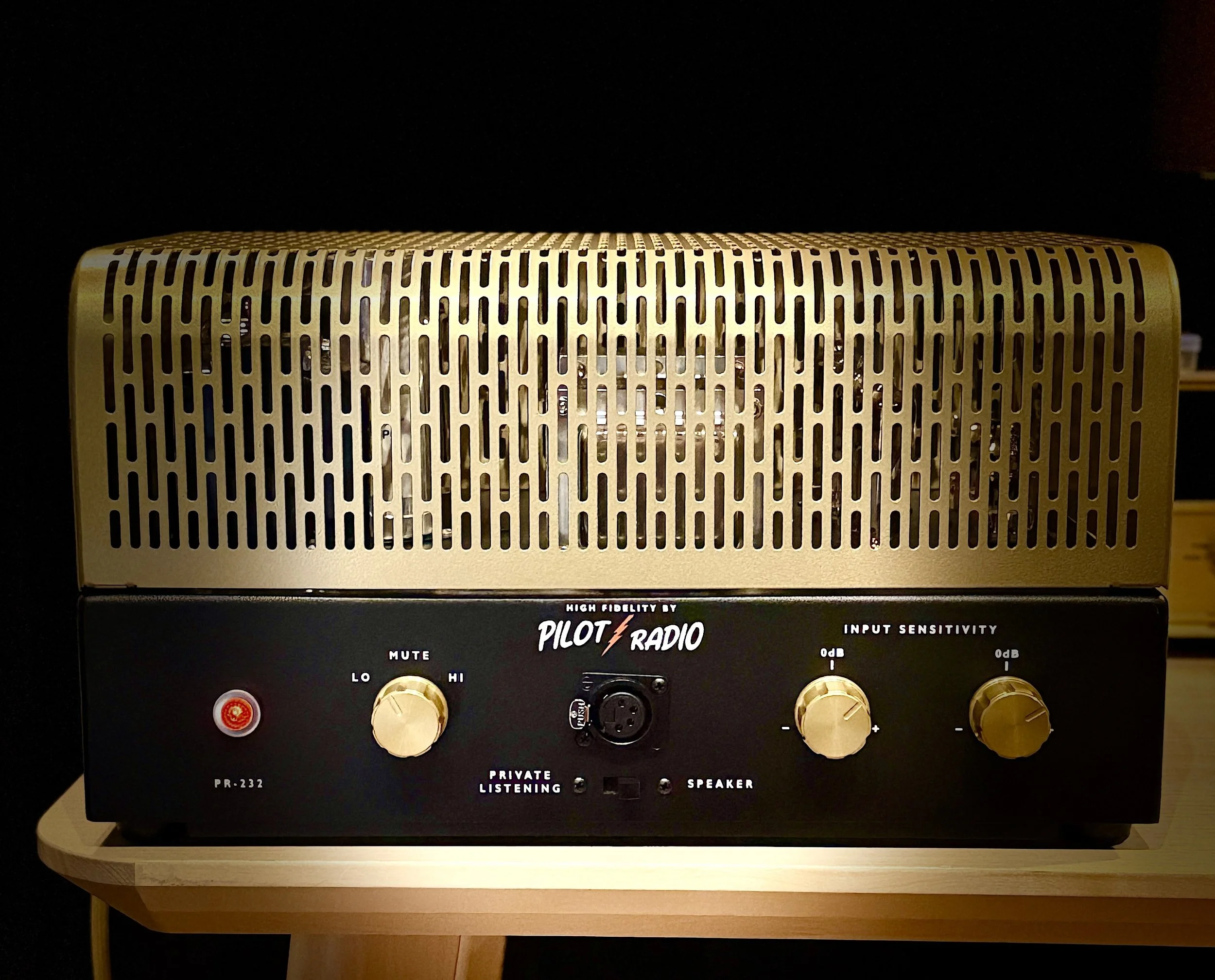

Pilot 232 Stereophonic Power Amp

$4,790.00

The Pilot 232, is a re-design of the highly regarded original 1959 era, all tube amp design, the “Curtain of Sound”.

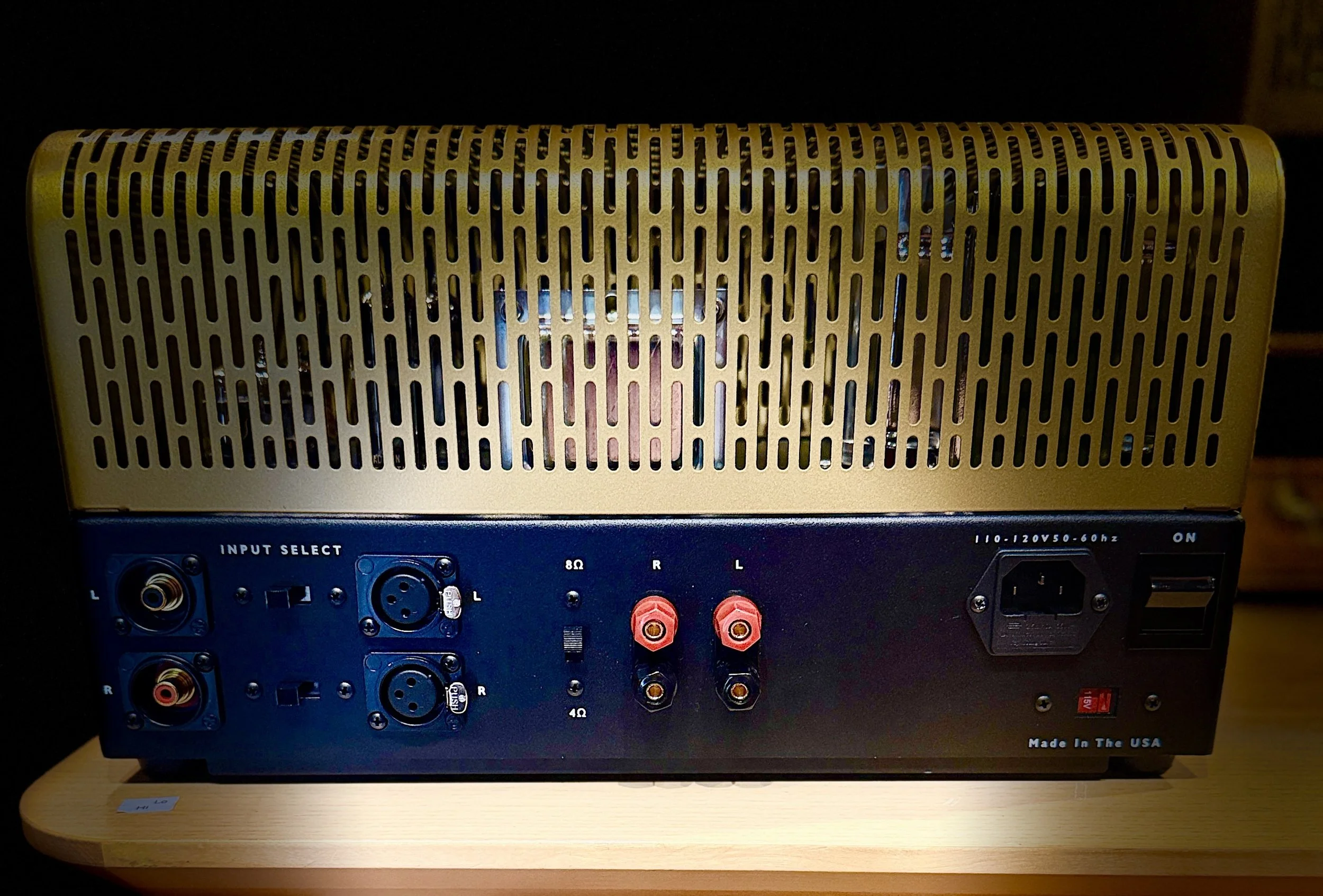

15 WPC/ Balanced XLR and RCA inputs / Balanced 4-pin Headphone Amp built in.

Ships from Texas. 2 Week lead time from order. Local Free Delivery & setup for DFW customers. Free Ground Shipping to US Customers.

The Pilot 232, is a re-design of the highly regarded original 1959 era, all tube amp design, the “Curtain of Sound”.

15 WPC/ Balanced XLR and RCA inputs / Balanced 4-pin Headphone Amp built in.

Ships from Texas. 2 Week lead time from order. Local Free Delivery & setup for DFW customers. Free Ground Shipping to US Customers.

2 x 12AX7 / ECC83
2 x 12AU7 / ECC82
Line Stage: 17.5 dB (50K input) / 14 dB (10K load)
Phono MM: 26dB + Line Stage (~44dB max)
Phono MC: Selectable 46dB / 52dB + Line Stage (~64dB / ~70dB max)
Passive: ±1 dB / -1.5 dB from 20Hz - 20KHz
Phono Rumble Filter: 7Hz, 3dB/octave
Line 1, Line 2
Phono MM, Phono MC (switch selectable at rear inputs)
120V / 240V (specified at the time of purchase)
A True Vinyl Experience
